Presentation

# #monitoringlove
# with Sensu

## OSMC 2014, Nuremberg, Germany

---

![](sensu_logo.png)

## [http://sensuapp.org](http://sensuapp.org)

Notes:
Monitoring framework/router

---

# Why Sensu?

- Ruby + JSON
- Scalable architecture
- Plugins in any language
- Can use Nagios checks
- Collects both checks and metrics
- Great community

Notes:
EventMachine

---

# Jochen Lillich

## http://freistil.it
## @geewiz

Notes:
Started using Nagios but hit load and queueing problems
DevOps Days 2012, Ulf Månsson: #monitoringlove

---

# Sensu Core

Notes:
Open Source, MIT license
Created in part-time by Sean Porter at Sonian, now maintained full-time at Heavy Water Operations

---

# Sensu Enterprise

Notes:
Improved performance
Metrics conversion
Third-party integrations
Commercial support

---

# Installation

- Omnibus packaging
- Configuration in JSON files
- [Sensu cookbook for Chef](https://github.com/sensu/sensu-chef)
- [Puppet module](https://github.com/sensu/sensu-puppet)

Notes:
Automation: Never forget to add new machines

---

![](https://farm9.staticflickr.com/8484/8242512118_945a1ccf9c_h.jpg)

---

![](basic.png)

---

![](http://www.rabbitmq.com/img/rabbitmq_logo_strap.png)

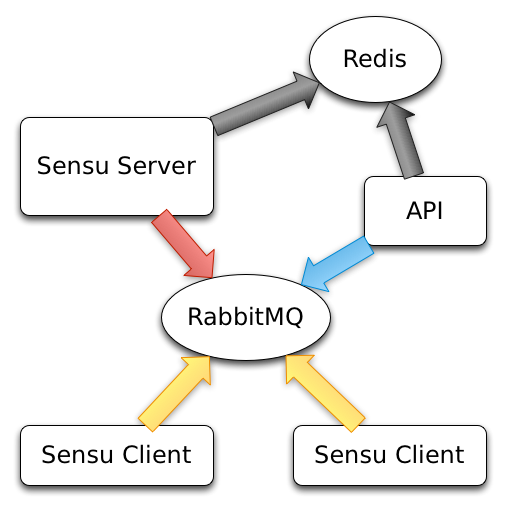

- Connects all Sensu components
- Asynchronous communication

---

# Sensu Server

- Orchestrates check execution
- Processes check results
- Triggers event handlers

---

# Sensu Client

- Registers automatically with the Server
- Sends keepalive information
- Receives check execution requests
- Schedules checks locally
- Executes checks
- Publishes check results
- Publishes external events

---

# API

- get event data
- get agent data
- trigger check execution
- resolve events
- silence checks

Notes:
REST-like interface

---

# Dashboard

- [Uchiwa](http://sensuapp.org/docs/latest/dashboards_uchiwa)
- [sensu-admin](https://github.com/sensu/sensu-admin)

---

![](http://whoisamy.com/images/RealityCheck_missionamykr.jpg)

Notes:
executed by the Sensu client
Subscription
Nagios protocol
event only for non-zero check results
type "event" triggers events always
client-specific values

---

# Scheduling

- Standard checks (server)
- Standalone checks (client)
- Manual checks (API)

---

~~~json
{
  "checks": {
    "disk_free": {
      "type": "status",
      "subscribers": [ "all" ],
      "handlers": [ "default" ],
      "command": "/usr/lib/nagios/plugins/check_disk
      -w :::disk_warn::: -c :::disk_crit:::
      -A -x /dev/shm -X nfs -i /boot",
      "interval": 60
    }
  }
}
~~~

Notes:
`interval`, `occurrences`, `refresh`, `low_flap_threshold`, `high_flap_threshold`

---

# Checks in Chef

~~~ruby
sensu_check 'mysql_server' do
  command "/usr/lib/nagios/plugins/check_mysql " +
    "-u 'monitoring' " +
    "-p '#{node['mysql']['server_mon_password']}'"
  handlers ['default']
  standalone true
  interval 30
end
~~~

---

# Metrics check

~~~json
{
  "checks": {
    "load_metrics": {
      "type": "metric",
      "command": "load-metrics.rb",
      "subscribers": [
        "production"
      ],
      "interval": 10
    }
  }
}
~~~

---

# Metrics output

~~~
$ ruby load-metrics.rb
srv3.local.load_avg.one 0.89  1365270842
srv3.local.load_avg.five  1.01  1365270842
srv3.local.load_avg.fifteen 1.06  1365270842
$ echo $?
0
~~~

---

# External events

~~~bash
echo '{ "name": "my_check",
  "output": "some output",
  "status": 0 }'
> /dev/tcp/localhost/3030
~~~

Useful: https://github.com/solarkennedy/sensu-shell-helper

---

![](jenny.jpg)

---

# Handler types

- Pipe
- TCP
- UDP
- Transport
- Sets

Notes:
Pipe handlers are for executing a command (or script), passing it the event data via STDIN.
TCP handlers are for writing event data to a TCP socket.
UDP handlers are for writing event data to a UDP socket.
Transport handlers are for publishing event data to a Sensu transport, such as RabbitMQ (default).
Handler sets are for grouping handlers; a way to send the same event data to one or more handlers, or simply create an alias.

---

# Common event handlers

- Email
- PagerDuty
- Graphite
- IRC

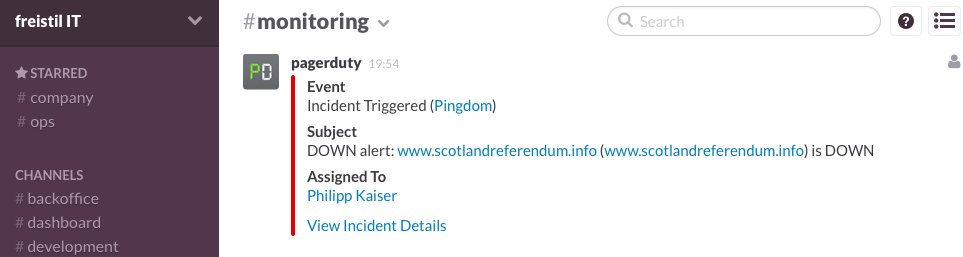

- Slack

---

![](slack.png)

---

# Example handler code

~~~ruby
#!/usr/bin/env ruby

require 'rubygems'
require 'json'

# Read event data
event = JSON.parse(STDIN.read, :symbolize_names => true)
# Write the event data to a file
file_name = "/tmp/sensu_#{event[:client][:name]}_" +
  "#{event[:check][:name]}"
File.open(file_name, 'w') do |file|
  file.write(JSON.pretty_generate(event))
end
~~~

---

# Example handler configuration

~~~json
{
  "handlers": {
    "file": {
      "type": "pipe",
      "command": "/etc/sensu/handlers/file.rb"
    }
  }
}
~~~

---

# Sensu CLI

[https://github.com/agent462/sensu-cli](https://github.com/agent462/sensu-cli)

- `sensu-cli resolve srv3 apache_http`
- `sensu-cli client delete srv3`
- `sensu-cli silence srv3 --reason "Shut up already" --expire 3600`

---

# #chatops

[https://github.com/sensu/sensu-hubot](https://github.com/sensu/sensu-hubot)

- `sensu events summarize`
- `sensu events filter severity critical`
- `sensu events filter subscription webservers`

---

# Monitoring your monitoring

- Check RabbitMQ ready queue!

---

# Scaling Sensu

---

# Scaling a single site

- Sensu Server
- Sensu API
- RabbitMQ
- Redis

Notes:
Run multiple sensu-server instances with the same RabbitMQ and Redis; automatic internal master election.
Stateless HTTP frontend; traditional load-balancing strategies
See [RabbitMQ clustering documentation](https://www.rabbitmq.com/clustering.html)
Single master; multiple Redis instances for fault tolerance; see [Redis Sentinel](http://redis.io/topics/sentinel)

---

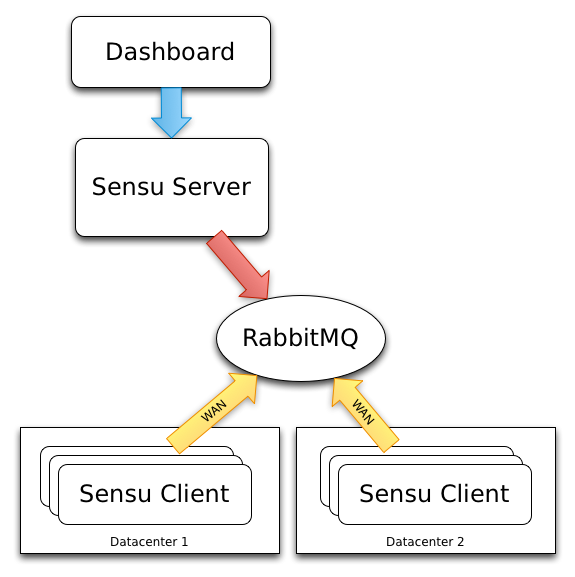

# Multi-DC operation

---

![](centralised.png)

Notes:
All Sensu clients execute checks locally. Their only interaction with Sensu servers is to push events onto RabbitMQ. Therefore, remote clients can connect directly to a remote RabbitMQ broker over the WAN.
- Very simple architecture, no additional infrastructure needed at remote sites
- Centralized alert handling
- Keepalive failures are now indistinguishable from WAN instability
- Lots of remote clients means lots of TCP connections over the WAN
- All clients appear to be in the same datacenter in Uchiwa

---

![](federated.png)

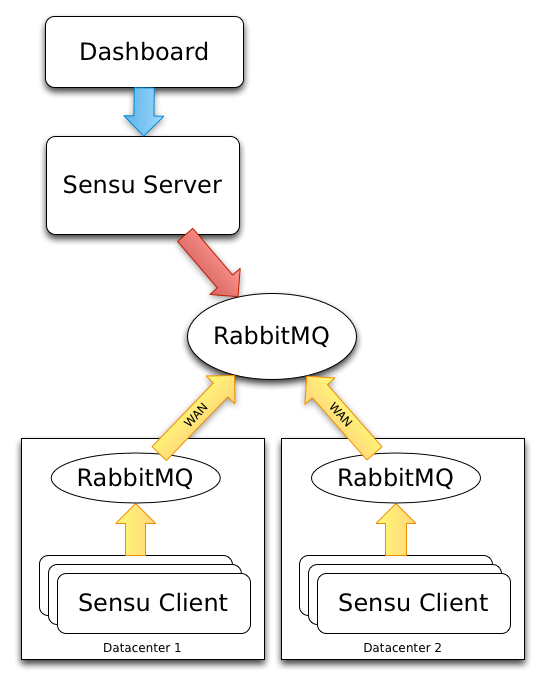

Notes:
RabbitMQ [Federation plugin](https://www.rabbitmq.com/federation.html) or [Shovel plugin](https://www.rabbitmq.com/shovel.html)
This is picking Availability and Partition Tolerance over Consistency with RabbitMQ.
+ Decreased infrastructure necessary at remote Datacenters
+ All Sensu server alerts originate from a single source
- WAN instability can result in floods of client keepalive alerts; requires check dependencies
- Increased RabbitMQ configuration complexity
- All clients “appear” to be in the same datacenter in Uchiwa

---

![](aggregated.png)

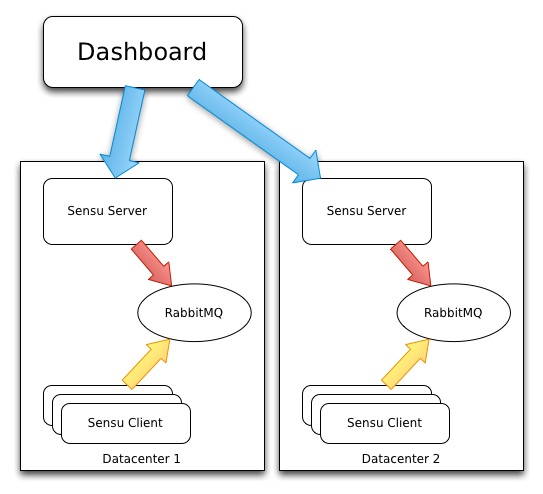

Notes:
- WAN instability does *not* lead to flapping sensu checks
- Sensu operation continues un-interrupted during a WAN outage
- The overall architecture is easier to understand and troubleshoot
- WAN outages mean a whole Datacenter can go dark and not set off alerts (cross-datacenter checks are therefore essential)
- WAN instability can lead to a lack of visibility as Uchiwa may not be able to connect to the remote Sensu APIs
- Requires all the Sensu infrastructure in every datacenter

---

# HA

- [High availability monitoring with Sensu](http://failshell.io/sensu/high-availability-sensu/)

---

# References

---

# Community plugins

https://github.com/sensu/sensu-community-plugins

- Over 600 plugins
- 80 contributors

---

# Support

- #sensu on FreeNode IRC
- sensu-users mailing list
- Commercial support from HeavyWater

---
